VPKC Variable Displacement Pump

VPKCF, VPKCCF & KPV Series high pressure vane pumps are totally compatible with the VPV series of Bosch Rexroth. Maximum pressure rating 306 Bar.

Low noise level even in the high pressure range:
VPKC Series is the best choice for your cooler units.

VPKC Series Single Vane Pump



VPKCF15-20 VPKCF23-26-30-40









Model
Operating Pressure (kgf / cm2)
Rated Speed (rpm)
Net Weight
Max
Min
VPKCF8
A1: 5~18        A2: 15~35
A3:30~55       A4: 50~70
1800
800
4.8 kg
VPKCF12
A1: 5~18        A2: 15~35
A3:30~55       A4: 50~70
1800
800
4.8 kg
VPKCF15
A1: 5~18        A2: 15~35
A3:30~55       A4: 50~70
1800
800
5.2 kg
VPKCF20
A1: 5~18        A2: 15~35
A3:30~55       A4: 50~70
1800
800
5.2 kg







Model
Operating Pressure (kgf / cm2)
Rated Speed (rpm)
Net Weight
Max
Min
VPKCF23
A1: 5~18        A2: 15~35
A3:30~55       A4: 50~70
1800
800
9.0 kg
VPKCF26
A1: 5~18        A2: 15~35
A3:30~55       A4: 50~70
1800
800
9.0 kg
VPKCF30
A1: 5~18        A2: 15~35
A3:30~55       A4: 50~70
1800
800
9.0 kg
VPKCF40
A1: 5~18        A2: 15~35
A3:30~55       A4: 50~70
1800
800
9.0 kg





Catalogues

VPKCF 8/12/15/20

VPKCF 23/26/30/40



VPKCC Series Double Vane Pump

VPKCF15-20 VPKCF23-26-30-40


Catalogues

VPKCCF 1212 - 2020

VPKCCF 2323 - 4040

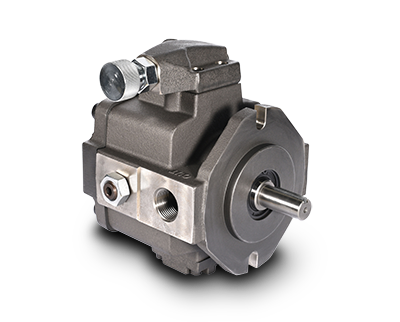

KPV Series High Pressure Variable Pump


• Abrasion resistant, fatigue-resistant port plate with tarnish-proof treatment
• With double (fixed and rotatable) cam rings design, the internal cam ring rotates smoothly to assure high stability.
• The impact pressure elimination/compensation design can minimize pump pressure surge
• Using special alloy to ensure durability and long product life

Catalogues

KPV & KPVV Series

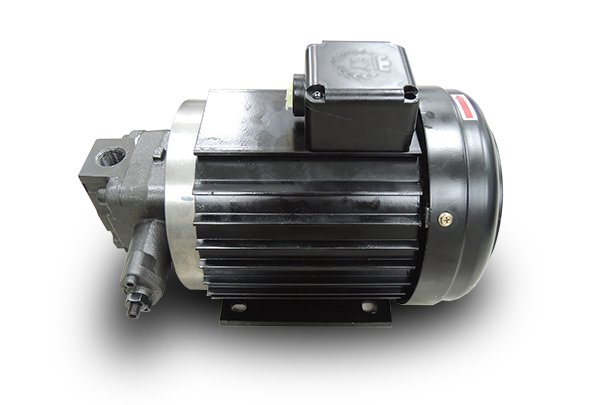

KUVN Variable Uni-Pump


• Energy efficient high performance up to 30~40%
• Lightweight: The compact design that suitable for a wide range of applications.
• Mnimized noise, durable life
• Low heat generation,low temperature rise

Catalogues

KUVN Series Pump

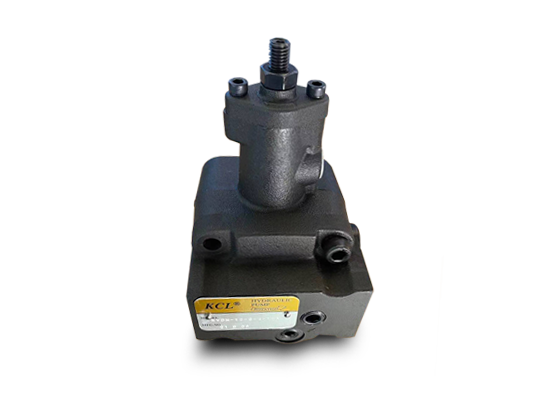

KVDN Low Pressure Variable Pump


• Available in two leak-proof types: Motor-side and shaft-side
• Energy efficient high performance up 30~40%
• Lightweight, compact design
• Low noise, durable life
• Low heat generation,low temperature rise

Catalogues

KVDN Series Pump



+
